CATx KVM Long-Range Extender DeSkew – Serial, Audio

The next generation of KVM extension
Built-in DeSkewing technology takes high-resolution graphics over long distances! All three colours can be equalised via keyboard controls to compensate for the disparate pair lengths found in CAT5e and higher cables. The result is simple: crisp and clear pictures at the remote end. Even S-XGA/U-XGA resolutions don't show visible degradation at 300 or 200 meters! In fact, you can get 1280 x 1024 resolution at up to 300 meters.
The new Remote Units with DeSkew are fully compatible with older BLACK BOX® CAT5 KVM Extender local units or our Extender Hub series.

Connections
Single Access — ACU2022A
Dual Access — ACU2028A
Serial + Audio — ACU2022A, ACU 2028A only

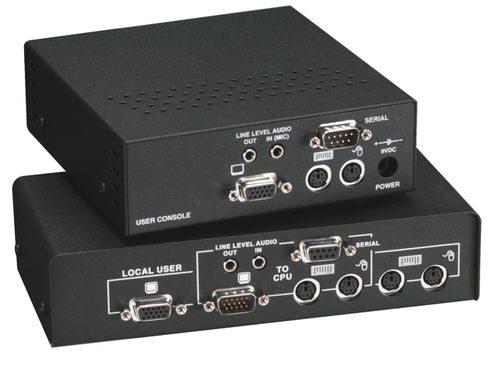

Connectors —
Local (1) HD15 M, (2) 6-pin mini DIN F, (1) RJ-45;
ACU2028A also has: (2) 6-pin mini DIN F, (1) HD15 F;
ACU2022A, 2028A also have: (2) 3.5-mm jack F, 1) DB9 F;
Remote module:
All: (1) RJ-45, (2) 6-pin mini DIN F, (1) HD15 F, (1) barrel connector M (power);
ACU2028A has : (2) 3.5-mm jack F,

Management:
All units are controllable via keyboard hot-key commands or software utility

Engine (KVM Extender)
Extender Type — Analogue copper
Cabling Type — CAT5/5e/6 and proposed CAT7; recommended: solid AWG 24
Platforms Supported — PS/2, AT (with optional AC244A), serial, audio
Mice Supported — User: Wheel mouse, PS/2; CPU: Wheel mouse, PS/2 (serial with AC244A)
Resolution (Local) — 1600 x 1280 @ 75 Hz
Resolution over Distance — 1600 x 1200 @ 60Hz / 200m; 1280 x 1024 @ 75 Hz /300 m
Colour Skew — Maximum: 42 ns; Step width: 2.8 ns
Power —
Single Video: Local unit: From the PC; Remote unis: 100–240 VAC, 50–60 Hz, external, autosensing, with IEC 320 connector (use PSU1002E-R3 as spare power supply)
Dual Video: Local units: Via PS/2® interface or optional external 9-VDC power supply (PSU1002E-R2); Remote units: External power supply, 100–240 VAC, 50–60 Hz (PSU1006E-R3)
