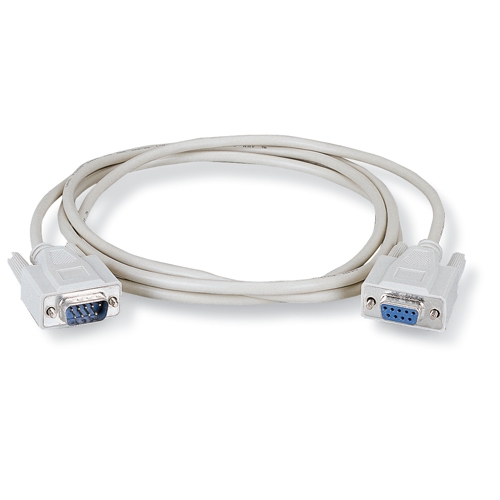

Serial Cable DB9

Use these universal DB9 cables to connect or extend any serial DB9 devices. Available in all possible gender combinations, provides you always with the right connector. Typical applications are connections to modems or multiplexers, extensions of AT style mice’s and a lot of other serial connections.

Application —Mouse extension cable
Conductors —9, pinned straight through
Connectors —(1) DB9 Male, (1) DB9 Female
Hood Assembly —Molded with thumbscrews
Material —
Conductor: Stranded copper;
Shielding: 100% mylar
Jacket: PVC, beige
Wire Gauge —26 AWG
Dimensions —Diameter: 5-mm
