G.SHDSL Ethernet Extender, 2-wire
Photo may vary from actual product
LB510A-R3: Desktop, 2 wires, Up to 15Mbps, 90-240 VAC
LB510A-R3: Desktop, 2 wires, Up to 15Mbps, 90-240 VAC
LB510A-R3: Desktop, 2 wires, Up to 15Mbps, 90-240 VAC
LB510A-R3: Desktop, 2 wires, Up to 15Mbps, 90-240 VAC
LB510A-R3: Desktop, 2 wires, Up to 15Mbps, 90-240 VAC


G.SHDSL Ethernet Extender, 2-wire


Ethernet extension over your existing twisted-pair cable.


  • Use just two wires to extend your network and achieve G.SHDSL performance. Provides data rates up to 15 Mbps over 2-wire, voice-grade wiring. Selectable 64-kbps rates enable you to choose the bandwidth you need.
  • Max reach of 9.1 km
  • Integrated 4-Port 10/100 Ethernet switch.
  • Probes voice-grade wiring to determine the optimum data rate supported.
  • Supports G.994.2 handshaking, enabling it to adapt the rate automatically to the existing line conditions.
  • Transformer-coupled two-wire interface boasts 1500-VAC isolation.
  • Simple to set up and, once configured, operates transparently.

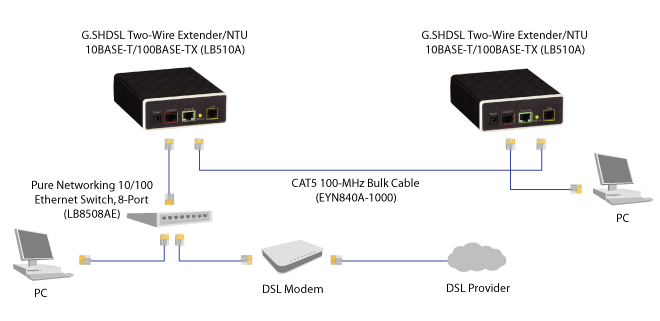

  • Works with other extender/NTUs to provide interface conversion along with network termination and extension.

Share |
  Product       Code   Unit price   Quantity
Desktop
2 wires
Up to 15Mbps

90-240 VAC
  G.SHDSL Ethernet Extender, 2-wire
G.SHDSL Ethernet Extender, 2-wire
  LB510A-R3
On request

Must be used in pairs (2x LB510A-R3 or in combination with other extender)



Actions
Datasheets
G.SHDSL Ethernet Extender, 2-wire Datasheet
