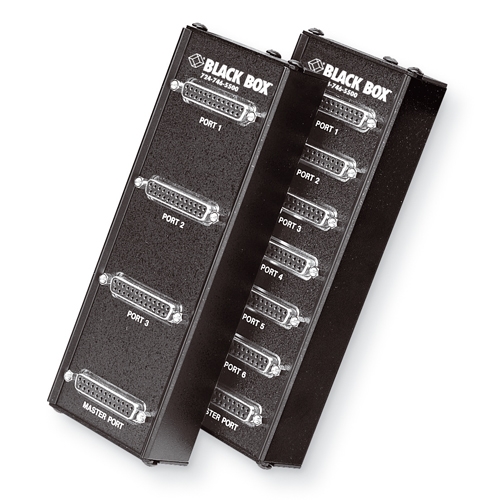

Modem Splitter

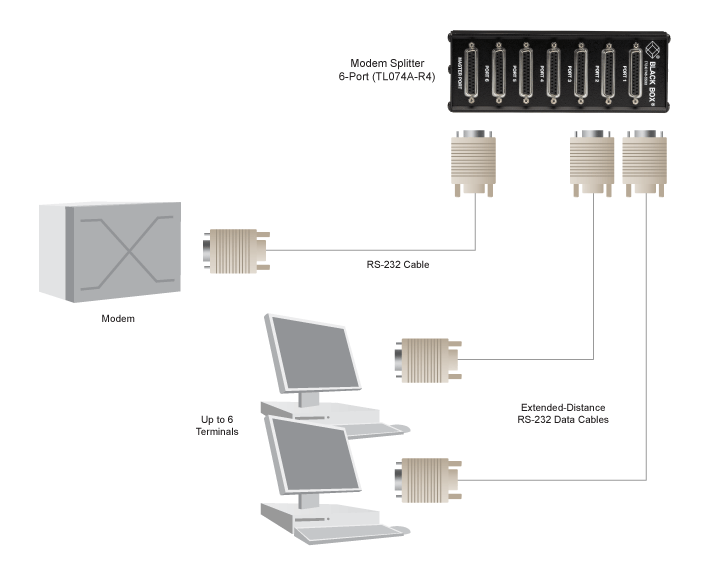

Use our Modem Splitters to connect multiple terminals to one modem and save money because you won’t need extra modems and extra lines. They are perfect for offices or workgroups that perform limited data communications or only connect to the Internet occasionally. No special cables are needed. Both models use ordinary straight-pinned cables for hook-up. The Modem Splitters are transparent to speed and protocol, and they work equally well in synchronous and asynchronous environments.

Leads Supported — Pins 1–8, 15, 17, 20
Main Channel Interface — DTE
Protocol — Synchronous or asynchronous
Subchannel Interface — DCE
Interface — RS-232 (master port DTE, slave ports DCE)
Connectors — TL074A-R4: (7) DB25 F
Dimensions — 19.1H x 6.4W x 3.3D cm
Weight — 0.9 kg

Both models include:
(1) 1.8-m Male/Female DB25 Extension cable
(1) Serial DB25 male AT adapter.
