SM960A, Pro Switching System Plus

Store home > Networking > Office Networking > Switches > Bypass/Fallback/Ganged > Pro Switching System Plus

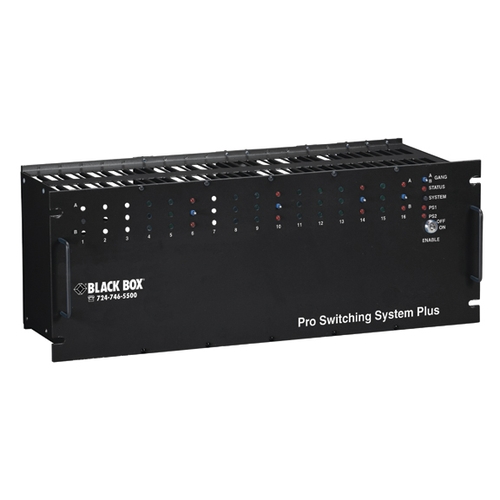

Photo may vary from actual product		Pro Switching System Plus Intelligent, secure switching for disaster recovery, access control, and network backup. Mix and match data, voice, video, and AC power switching modules in a single chassis. The chassis holds up to 16 switch modules. Offers secure switching via latching relays or micro-mirror switching mechanisms. Cascade multiple 18-slot chassis to support up to 4080 ports. Supports CAT6 10-GbE as well as legacy RS-232 connections via optional modules. Switch operates at Layer 1 and is transparent to data formats and protocols. Choose a separately available Controller Card to control switching locally or remotely.

	Product				Code		Unit price		Quantity

18 Slot Chassis

Pro Switching System Plus

SM960A

On request

Add to shopping basket

Accessories

	Product	Code	Unit price

Pro Switching System Plus Controller Cards
	Controller Card, SNMP/RS-232/Manual Switching - SNMP/RS-232/Manual	SM962A	On request
	Controller Card, Manual Switching - Manual	SM964A	On request
Pro Switching System Plus, A/B Switch Cards
	A/B Switch Card DB25 - DB25	SM965A	On request
	A/B Switch Card DB9 - DB9	SM966A	On request
	A/B Switch Card DB15 - DB15	SM967A	On request
Pro Switching System Plus A/B Switch Cards, Fiber Optic
	A/B Switch Card, Fiber Optic, ST, Latching - ST	SM977A-ST	On request
Pro Switching System Plus A/B Switch Card, RJ-45
	A/B Switch Card, RJ-45 CAT6 10-GbE, Dual-Port - CAT6 dual	SM980A	On request

Add to shopping basket

In-depth info Technical data

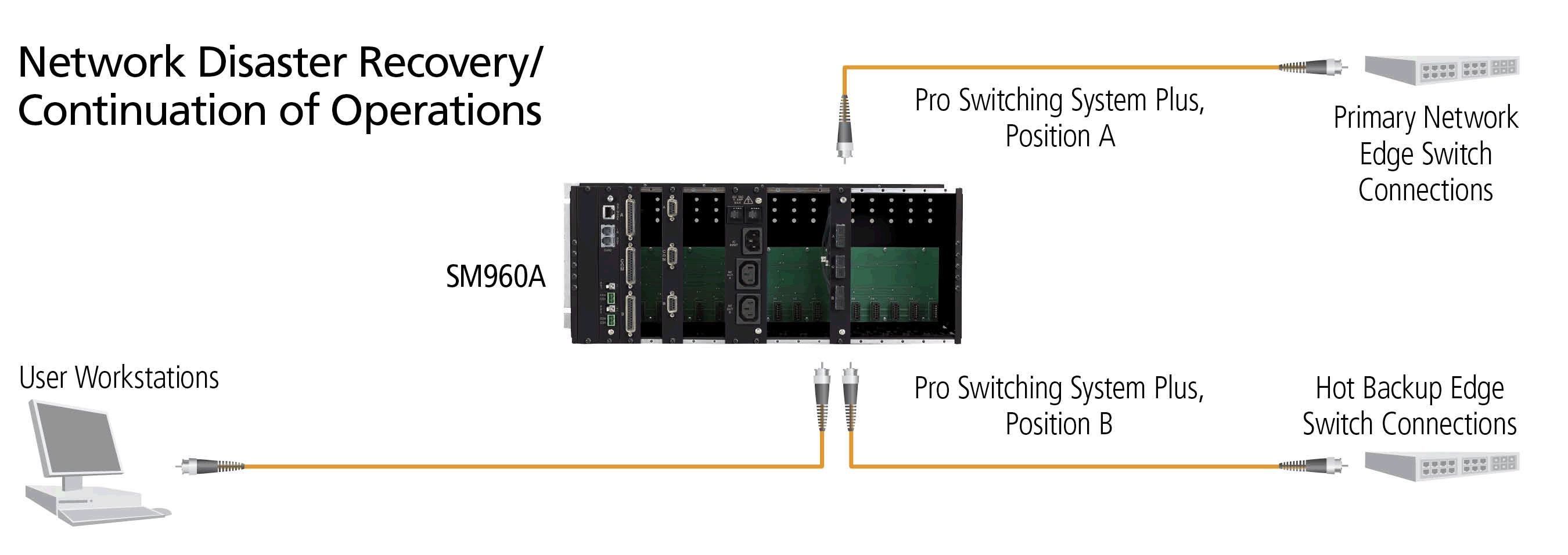

Diagrams/Videos

The Pro Switching System Plus is an intelligent ganged switching system consisting of a chassis and individual interface cards (order separately). The advanced design of this system gives you incredible operational flexibility and performance.

You can switch one card individually or switch the entire rack through a Controller Card. You can even daisychain multiple chassis to control up to 4080 individual ports.

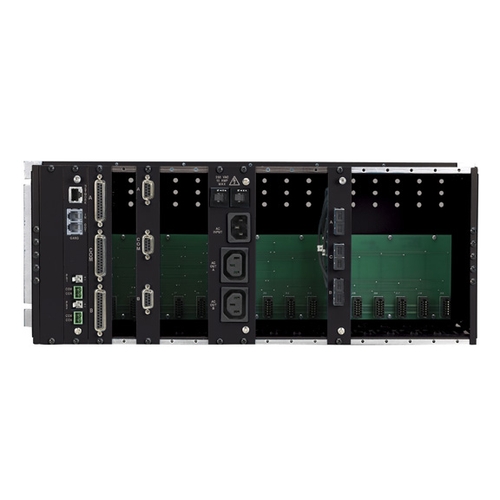

The chassis includes a backplane for plugging in the cards. Just order the cards you need, as well as a Power Supply Module (or for redundancy, order two Power Supply Modules).

Switch securely.
For fail-safe operation, the system uses proprietary micro-mirror or latching relay switching technology. That means data can continue to pass through even if the power has been cut off.

The cards perform Layer 1 switching, so the system operates independently of data rates, protocols, formats, or signal levels.

The Controller Card.
The key to the system is the Controller Card. One is required for each 18-slot chassis, and it takes up two card slots. The Controller Card enables you to individually switch any port from the front panel, or gang switch the entire system.

For more capabilities, choose models with an RS-232 serial controller, or an SNMP-based Ethernet controller, which also includes GUI Switchcenter software. These intelligent cards enable you to switch from anywhere in the world via an RS-232 or IP connection.

Each chassis also has a keyed switch so you can enable/disable manual switching from the front-panel toggle switches.

Pick a card, any card.
Switching cards are available for RS-232, video, fiber, and CAT5 and CAT6 connections.

Mix it up.
Use the system to support both new and legacy technologies. Add cards for fast CAT6 10-GbE networking while keeping connections for older RS-232 and 75-ohm video connections.

Control power.
To power a backup network, choose the 1-In/2-Out Power Switch Modules. Or, to set up a redundant backup power supply, choose the 2-In/1-Out models. Both are available with advanced network reporting functions.
